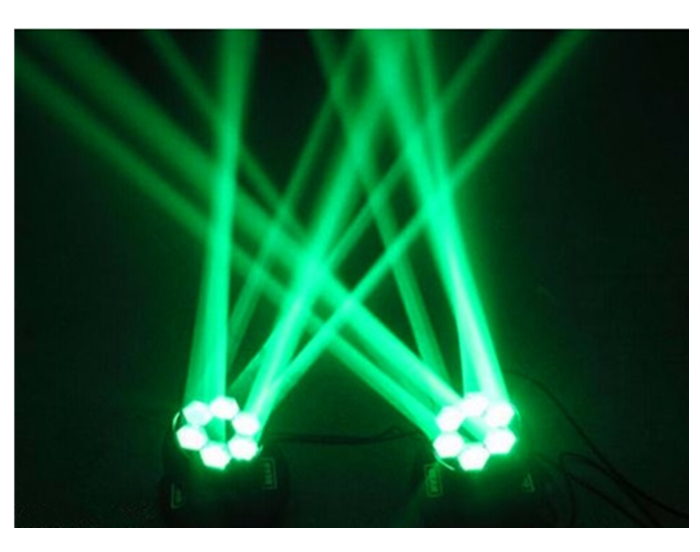

VS0610BE 6X12W Quad LED beam moving light
-
PRODUCT INFO
Product Description
Specifictaion:
Voltage: AC100-240V 50/60Hz
Power:12V+24V power supply
Light source:6x12W RGBW4-IN-1 LED
10/15DMX channels selectable
Function:Color mix, automatic color change, built-in program and strobe effect with adjustable speed,dimmer,master/slave
LED display, easy to control
Control:Auto, sound active, DMX512,
With Safety loop
size: 28x26x35CM
Weight:7.5kg
15CH mode:
| CH | Function | Data | Descrioption |
| 1 | Pan | 0-255 | Pan |
| 2 | Pan fine | 0-255 | Pan fine(16Bit) |
| 3 | Tilt | 0-255 | Tilt |
| 4 | Tilt fine | 0-255 | Tilt fine(16Bit) |
| 5 | speed | 0-255 | XY speed from fast to slow |
| 6 | Motor rotation | 0-127 | Motor rotation(orientation) |
| 128-190 | Motor rotation(right rotation from fast to slow) | ||
| 191-255 | Motor rotation(left rotation from slow to fast) | ||
| 7 | Dimmer | 0-255 | Dimmer |
| 8 | strobe | 0 | No strobe |
| 1-255 | Strobe from slow to fast | ||
| 9 | Red | 0-255 | Red |
| 10 | green | 0-255 | green |
| 11 | blue | 0-255 | blue |
| 12 | white | 0-255 | white |
| 13 | Marc | 0-5 | No function |
| 6-20 | Color choose(DMX512) | ||
| 21-40 | Color jump change(DMX512) | ||
| 41-60 | Color fade change(DMX512) | ||
| 61-80 | Color plus change(DMX512) | ||
| 81-100 | Sound 1(DMX512) | ||
| 101-120 | Sound 2(DMX512) | ||
| 121-140 | Color choose | ||
| 141-160 | Color Jump change | ||
| 161-180 | Color fade change | ||
| 181-200 | Color plus change | ||
| 201-220 | Sound1 | ||
| 221-255 | Sound 2 |
| 14 | speed | 0-255 | Color speed |
| 15 | Reset | 0-244 | No function |
| 245-255 | 13 seconds reset |
