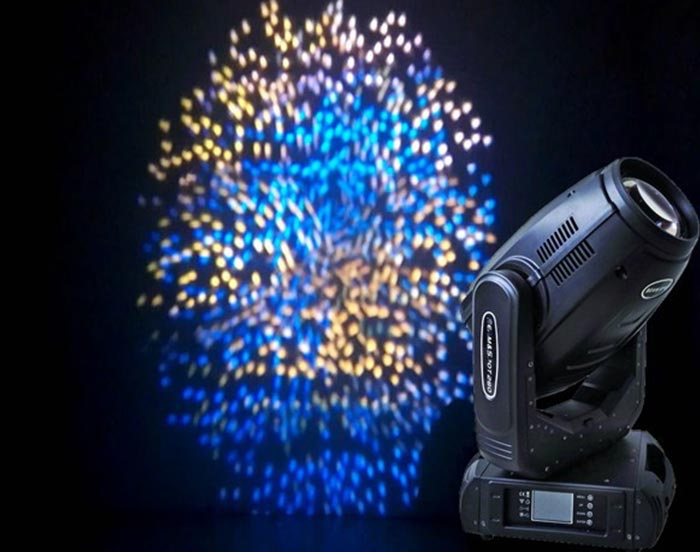

280W Moving Head spot beam
Voltage : 110W~240V/50-60Hz
Lamp : Yodn 280W
Color wheel: 13 colors + white
Rotating Gobo Wheel, 9 gobos
Static Gobo wheel,14 gobos,
Prism 1: 8-facet circular prism rotating
Prism 2: 6-facet linear prism rotating
Zoom: parallel beam angel 2.5°-20° change
Frost effect : adjustable Wash effects angle
Focus: linear adjustment
Dimmer : 0-100% linear adjustment
Strobe : Double lens strobe
Pan/Tilt : X axis 540° Y axis 270°
Control mode :DMX512, Automatic and Master/ slave mode
Channel : 16 CHs / 24 CHs
Weight : 19kG
|
Channel |
DMX ＆#118alue |
Function | |
|
1 |
2 | ||
|
1 |
1 |
0-255 |
Pan |
|
2 |
* |
0-255 |
Pan fine |
|
3 |
2 |
0-255 |
Tilt |
|
4 |
* |
0-255 |
Tilt fine |
|
5 |
3 |
0-255 |
Pan/tilt speed |
|
6 |
4 |
0-19 |
Reserved |
|
20-24 |
Eco mode ( Lamp power 230W) | ||
|
25-129 |
Reserved | ||
|
130-139 |
Lamp on | ||
|
140-149 |
Pan/Tilt reset | ||
|
150-159 |
Reserved | ||
|
160-169 |
Effect reset | ||
|
170-199 |
Reserved | ||
|
200-209 |
Total reset | ||
|
210-229 |
Reserved | ||
|
230-239 |
Lamp off | ||
|
240-255 |
Reserved | ||
|
7 |
5 |
0-8 |
white |
|
9-17 |
Deep red | ||
|
18-26 |
Deep blue | ||
|
27-35 |
yellow | ||
|
36-44 |
green | ||
|
45-53 |
Magenta | ||
|
54-62 |
Azure | ||
|
63-71 |
red | ||
|
72-80 |
Deep green | ||
|
81-89 |
amber | ||
|
90-98 |
blue | ||
|
99-107 |
orange | ||
|
108-116 |
CTO | ||
|
117-127 |
Uv filter | ||
|
128-129 |
white | ||
|
130-134 |
UV filter+CTO | ||
|
135-138 |
CTO+Orange | ||
|
139-143 |
Orange+blue | ||
|
144-147 |
Blue+amber | ||
|
148-152 |
Amber+deep green | ||
|
153-157 |
Deep green+red | ||
|
158-161 |
Red+azure | ||
|
162-166 |
Azure+magenta | ||
|
167-171 |
Magenta+green | ||
|
172-176 |
Green+yellow | ||
|
177-180 |
Yellow+deep blue | ||
|
181-185 |
Deep blue+deep red | ||
|
186-189 |
Deep red+white | ||
|
190-220 |
Forwards rainbow effect from slow to fast | ||
|
221-250 |
Forwards rainbow effect from fast to slow | ||
|
250-255 |
Reserved | ||
|
8 |
* |
|
Reserved |
|
9 |
6 |
|
Reserved |
|
10 |
7 |
Fixed gobo | |
|
0-3 |
Open/hole | ||
|
4-9 |
Gobo 1 | ||
|
10-15 |
Gobo 2 | ||
|
16-21 |
Gobo 3 | ||
|
22-27 |
Gobo 4 | ||
|
28-33 |
Gobo 5 | ||
|
34-39 |
Gobo 6 | ||
|
40-45 |
Gobo 7 | ||
|
46-51 |
Gobo 8 | ||
|
52-57 |
Gobo 9 | ||
|
58-63 |
Gobo 10 | ||
|
64-69 |
Beam reducer 1 | ||
|
70-75 |
Beam reducer 2 | ||
|
76-87 |
Beam reducer 3 | ||
|
Gobo shaking from slow to fast | |||
|
88-95 |
Gobo 1 | ||
|
96-103 |
Gobo 2 | ||
|
104-111 |
Gobo 3 | ||
|
112-119 |
Gobo 4 | ||
|
120-127 |
Gobo 5 | ||
|
128-135 |
Gobo 6 | ||
|
136-143 |
Gobo 7 | ||
|
144-151 |
Gobo 8 | ||
|
152-159 |
Gobo 9 | ||
|
160-167 |
Gobo 10 | ||
|
168-175 |
Beam reducer 1 | ||
|
176-183 |
Beam reducer 2 | ||
|
184-199 |
Beam reducer 3 | ||
|
200-255 |
Fix gobo Running water from slow to fast | ||
|
10 |
8 |
Rotation gobo | |
|
0-8 |
Hole | ||
|
9-17 |
Gobo 1 | ||
|
18-26 |
Gobo 2 | ||
|
27-35 |
Gobo 3 | ||
|
36-44 |
Gobo 4 | ||
|
45-53 |
Gobo 5 | ||
|
54-62 |
Gobo 6 | ||
|
63-71 |
Gobo 7 | ||
|
72-80 |
Gobo 8 | ||
|
81-89 |
Gobo 9 | ||
|
Gobo shaking from slow to fast | |||
|
90-97 |
Gobo 1 | ||
|
98-106 |
Gobo 2 | ||
|
107-115 |
Gobo 3 | ||
|
116-124 |
Gobo 4 | ||
|
125-133 |
Gobo 5 | ||
|
134-142 |
Gobo 6 | ||
|
143-151 |
Gobo 7 | ||
|
152-160 |
Gobo 8 | ||
|
161-169 |
Gobo 9 | ||
|
170-179 |
Gobo 9 stop | ||
|
180-217 |
Running water from fast to slow | ||
|
218-255 |
Running water from slow to fast | ||
|
12 |
9 |
Rotation gobo | |
|
0-127 |
indexing | ||
|
128-177 |
Backwards gobo rotation from slow to fast | ||
|
178-203 |
No rotation | ||
|
204-255 |
Forwards gobo rotation from fast to slow | ||
|
13 |
* |
|
reserved |
|
14 |
10 |
0-19 |
empty |
|
20-75 |
6-facet linear rotating prism | ||
|
76-255 |
8-facet circular rotating prism | ||
|
15 |
11 |
0-127 |
Prism rotation indexing |
|
128-191 |
Forwards prism rotation from fast to slow | ||
|
192-193 |
empty | ||
|
194-255 |
Backwards prism rotation from slow to fast | ||
|
16 |
12 |
0-64 |
empty |
|
65-255 |
Liner frost | ||
|
17 |
13 |
0-255 |
zoom |
|
18 |
* |
0-255 |
Zoom fine |
|
19 |
14 |
0-255 |
focus |
|
20 |
* |
0-255 |
Focus fine |
|
21 |
* |
0-255 |
reserved |
|
22 |
15 |
0-31 |
Strobe closed |
|
32-63 |
Strobe open | ||
|
64-95 |
Strobe from slow to fast | ||
|
96-127 |
Strobe open | ||
|
128-143 |
Strobe from fast to slow ,slow close to fast open | ||
|
144-159 |
Strobe from slow to fast fast open-slow close | ||
|
160-191 |
Strobe open | ||
|
192-223 |
Random strobe from slow to fast | ||
|
224-255 |
Strobe open | ||
|
23 |
16 |
0-255 |
Dimmer intensity |
|
24 |
* |
|
reserved |
