VS-5R
-
PRODUCT INFO

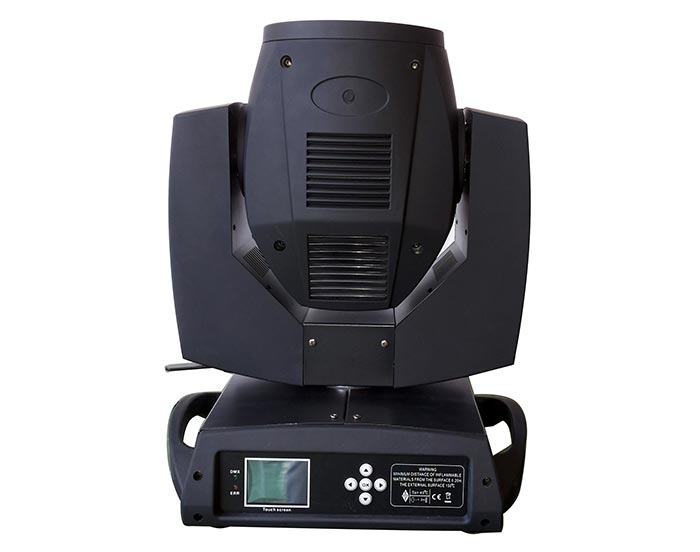

200W 5R Moving Head Beam Light
● Voltage : AC100V~240V/50Hz/60HZ
● Lamp :Philips Lamp,189W,color temp:8000k
● Color wheel : 14 colors
●Gobos wheel : 17 fixed gobos
● Prism : Rotating 8 facet prism
● Frost:0-100%
● Focus : electronic
● Dimmer : 0-100%
● Shutter : 0.5-9 times second Radom strobe
● Control mode : DMX512/master/slaver model
●Channel number : 16
● N.W : 18KG
|
DMX16CH Mode Channel | ||
|
CH |
number |
Function Description |
|
CH1 |
0-255 |
Pan |
|
CH2 |
0-255 |
Tilt |
|
CH3 |
0-255 |
Pan Fine |
|
CH4 |
0-255 |
Tilt Fine |
|
CH5 |
0-255 |
XY speed from fast to slow |
|
CH6 |
0-255 |
Strobe:8-127 fade from slow to fast,128-251 strobe froms slow to fast |
|
CH7 |
0-255 |
Dimmer |
|
CH8 |
0-255 |
Color wheel |
|
CH9 |
0-255 |
Gobe |
|
CH10 |
0-255 |
Gobo rotation |
|
CH11 |
0-255 |
Prism |
|
CH12 |
0-255 |
Prism rotation |
|
CH13 |
0-255 |
Focus |
|
CH14 |
0-255 |
Frost |
|
CH15 |
0-255 |
X/Y Auto running |
|
CH16 |
0-255 |
128-200:Turnoff 201-255:Turn on , 255 3s : reset |
