VS2510
-
PRODUCT INFO

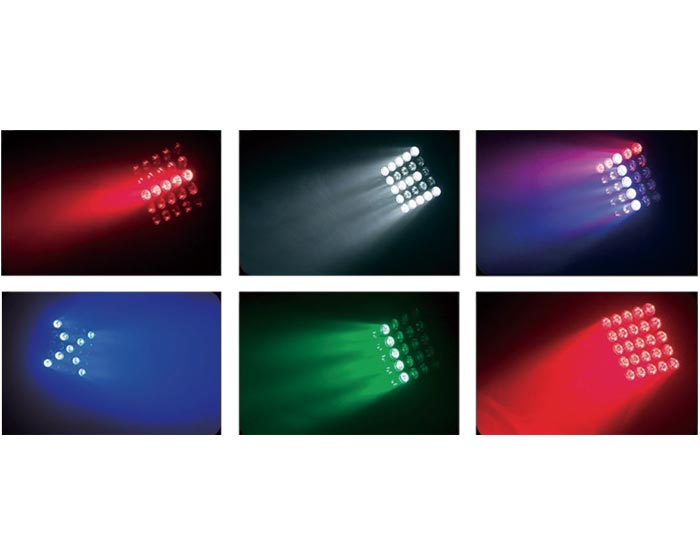

LED25x10W CREE Quad in 1 Moving Matrix Beam
Voltage: AC100~240V
Frenquency: 50~60Hz
LED: 25x10W CREE Quad in 1 LED
Rate: IP 20
Control Channel: 16/112CH
Strobe: 0-20times/second
Dimmer: 0-100% electric dimmer
Control Model: DMX 512, master/slave, sound-activated, auto-running with built in program
Size: 36x33x45cm
Weight: 14kgs
|
CH |
Function |
Instructions |
|
1 |
0-255 |
Motor X |
|
2 |
0-255 |
Motor Y |
|
3 |
0-255 |
X fine tuning（16Bit） |
|
4 |
0-255 |
Y fine tuning（16Bit） |
|
5 |
0-255 |
0--4： no effect；
5--130： X rotate forward（from slow to fast）；
131--255： X rotate reverse（from fast to slow）； |
|
6 |
0-255 |
0--4： no effect；
5--130： Y rotate forward（from slow to fast）；
131--255： Y rotate reverse（from fast to slow）； |
|
7 |
0-255 |
Motor XY speed from fast to slow |
|
8 |
Dimmer |
dimmer，linear dimmer，from dark to bright |
|
9 |
Strobe |
strobe，from slow to fast |
|
10 |
Function Option1
|
0--24： DMX 112CH Control ；
25--30color selection（Motor is controlled by 512）；
31--36：jump change（Motor is controlled by 512）；
37--42：gradual change（Motor is controlled by 512）；
43--46： pattern 1（Motor is controlled by 512）；
47--50： pattern 2（Motor is controlled by 512）；
.................
129--132：pattern 23（Motor is controlled by 512）；
133--138：sound-active（Motor is controlled by 512）；
139--144：color selection（motor ordered by built-in program mode）；
145--150：jump change（motor ordered by built-in program mode）；
151--156：gradual change（motor ordered by built-in program mode）；
157--160：pattern 1（motor ordered by built-in program mode）；
161--164：pattern2（motor ordered by built-in program mode）；
................
244--248：pattern 23（motor ordered by built-in program mode）；
249--255：sound-active（motor ordered by built-in program mode）； |
|
11 |
Function Option2 |
0--5： DMX 110CH Control；
6--130： Selection of Fixed 126 patterns（Motor is controlled by 512 ）；
131--255：Selection of Fixed 125 patterns（motor ordered by built-in program mode）； |
|
12 |
Function Speed 1 |
Function Speed ，from slow to fast |
|
|
Function Speed 2 |
0--31： fixed pattern direction 1；
32--63： fixed pattern direction 2；
64--95： fixed pattern direction 3；
96--126： fixed pattern direction 4；
127--195：pattern rotate clockwise；from slow to fast；
196--255：pattern rotate anticlockwise；from slow to fast； |
|
13 |
R1Dimmer |
R1 dimmer，linear dimmer，from dark to bright |
|
14 |
G1 Dimmer |
G1 dimmer，linear dimmer，from dark to bright |
|
15 |
B1 Dimmer |
B1 dimmer，linear dimmer，from dark to bright |
|
16 |
W1 Dimmer |
W1 dimmer，linear dimmer，from dark to bright |
|
17 |
R2 Dimmer |
R2 dimmer，linear dimmer，from dark to bright |
|
18 |
G2 Dimmer |
G2 dimmer，linear dimmer，from dark to bright |
|
19 |
B2 Dimmer |
B2 dimmer，linear dimmer，from dark to bright |
|
20 |
W2Dimmer |
W2 dimmer，linear dimmer，from dark to bright |
|
…… |
…… |
…… |
|
112 |
W25 Dimmer |
W25 dimmer，linear dimmer，from dark to bright |
