VS1210
-
PRODUCT INFO

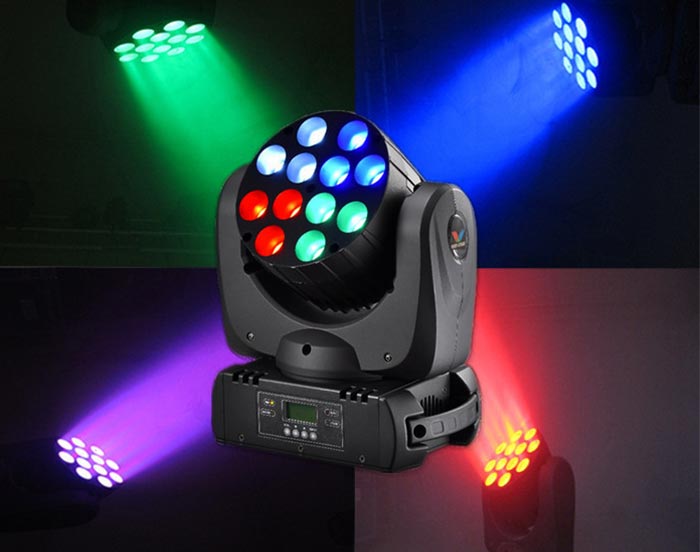

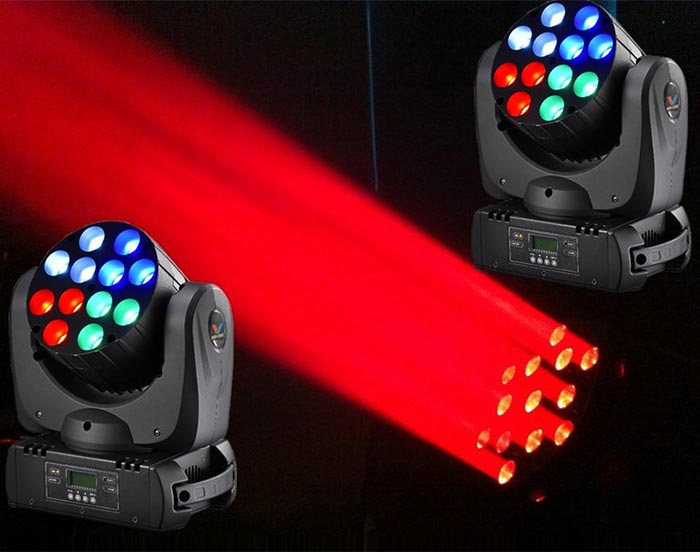

12X10W Cree Quad LED beam movinglight fast movement,high power
●Voltage:AC100 – 240V
● Frenquency:50-60Hz
● Power: 108W
● LED:12x10W RGBW in 1 Cree LED
● Rate:IP 20
● Control channel: 28CH
●Control model:DMX 512,master/slave
●Size:31x21x 36.5cm
●Weight:5.7kgs
|
Channel |
DMX ＆#118alue |
Function |
|
1 |
0-255 |
Pan |
|
2 |
0-255 |
Pan fine |
|
3 |
0-255 |
Tilt |
|
4 |
0-255 |
Tilt fine |
|
5 |
0-255 |
X/Y speed |
|
6 |
0-255 |
Marco |
|
7 |
0-255 |
Marco speed |
|
8 |
0-255 |
Function |
|
9 |
0-255 |
Dimmer |
|
10 |
0-255 |
strobe |
|
11 |
0-255 |
RED 1 |
|
12 |
0-255 |
GREEN 1 |
|
13 |
0-255 |
BLUE 1 |
|
14 |
0-255 |
WHITE 1 |
|
15 |
0-255 |
RED 2 |
|
16 |
0-255 |
GREEN 2 |
|
17 |
0-255 |
BLUE 2 |
|
18 |
0-255 |
WHITE 2 |
|
19 |
0-255 |
RED 3 |
|
20 |
0-255 |
GREEN 3 |
|
21 |
0-255 |
BLUE 3 |
|
22 |
0-255 |
WHITE 3 |
|
23 |
0-255 |
RED 4 |
|
24 |
0-255 |
GREEN 4 |
|
25 |
0-255 |
BLUE 4 |
|
26 |
0-255 |
WHITE 4 |
|
27 |
0-255 |
Color |
|
28 |
0-255 |
Fade speed |
