MSB-810RGBW
-
PRODUCT INFO

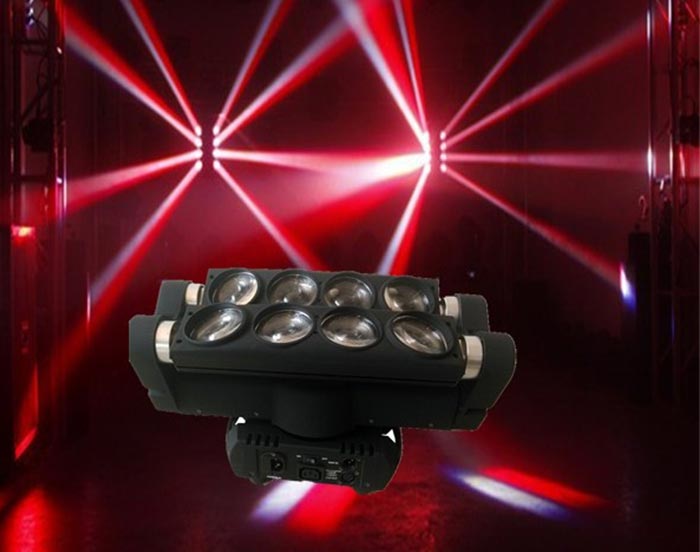

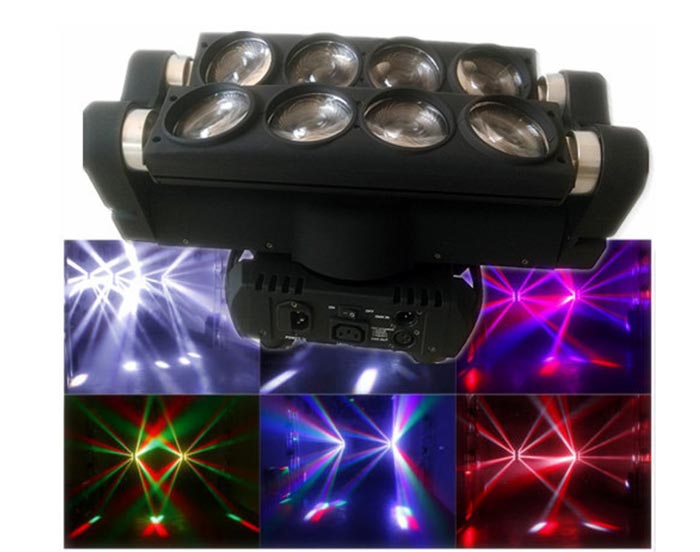

LED8X10W RGBW 4 in 1 Cree spider beam moving head (flat double layer)
Voltage: AC90~250V
Frenquency: 50~60Hz
Power: 100W
LED: 8x10W RGBW Quad in 1 CREE LED
Control Channel: 11CH/37CH
Control Model: DMX 512, master/slave, sound-activated
IP Rate: IP20
Size: 49x47x24cm
N. W: 8kgs
|
DMX 36CH Mode Channel | ||
|
CH1 |
0-255 |
Pan Motor 1 0°---630° |
|
CH2 |
0-255 |
Tilt Motor 1 0°---360° |
|
CH3 |
0-255 |
Tilt Motor 2 0°---360° |
|
CH4 |
0-255 |
Dimmer |
|
CH5 |
0-255 |
Strobe 0-9 no function ,10-255 slow to fast |
|
CH6 |
0-255 |
LED 1 Red dimmer |
|
CH7 |
0-255 |
LED 1 Green dimmer |
|
CH8 |
0-255 |
LED 1 Blue dimmer |
|
CH9 |
0-255 |
LED 1 White dimmer |
|
CH10 |
0-255 |
LED 2 Red dimmer |
|
------- |
0-255 |
LED 2 Green dimmer |
|
CH32 |
0-255 |
---------------- |
|
CH33 |
0-255 |
LED 7 White dimmer |
|
CH34 |
0-255 |
LED 8 Red dimmer |
|
CH35 |
0-255 |
LED 8 Green dimmer |
|
CH36 |
0-255 |
LED 8 Blue dimmer |
|
CH37 |
0-255 |
LED 8 White dimmer |
