ML10/ML30
-
PRODUCT INFO

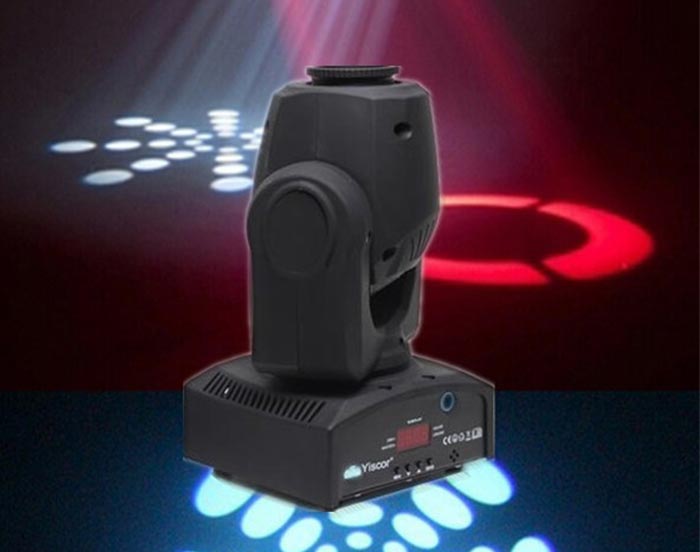

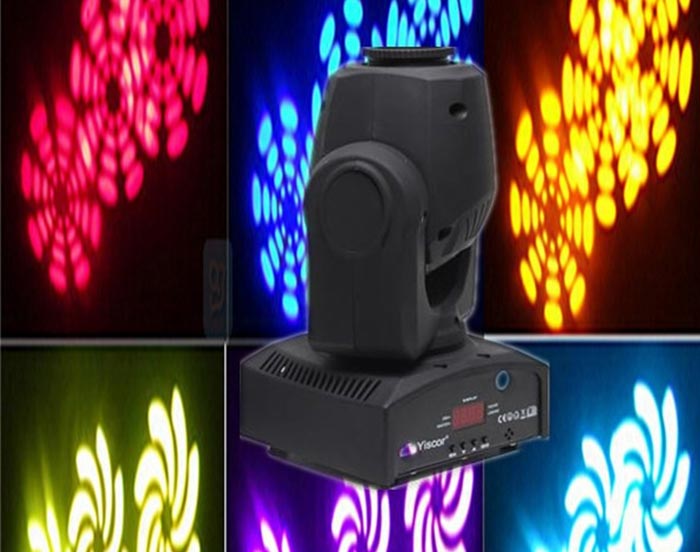

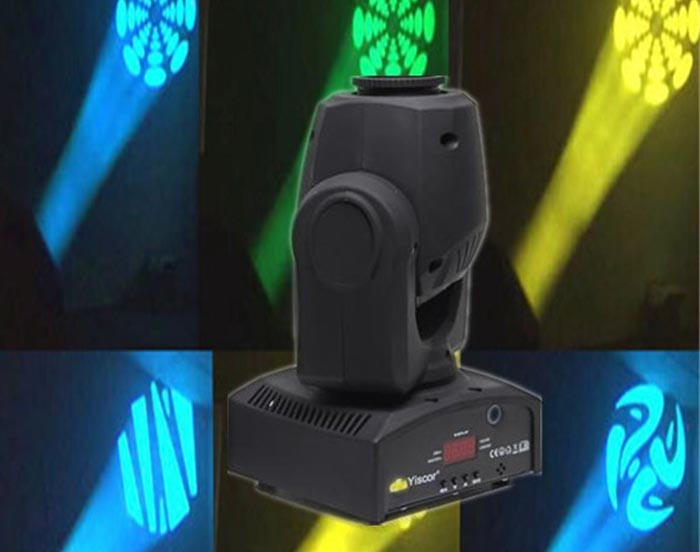

LED1X10W /30W Cree White Moving Head Spot Light
●Voltage：AC 100-240V 60/50Hz
●Lamp：1X10W /30W CREE white LED
●Control model:DMX512,auto .sound
●Color wheel:7colors+white
●gobo wheel:7gobo+white
●Channel：9/11CH
●Pan：540°
●Tilt：250°
●Prism:3prism
●Light size:15X16X30CM
●Weight:2.5KG
|
DMX 11CH Mode Channel | ||
|
1 |
0-255 |
Pan |
|
2 |
0-255 |
Pan fine |
|
3 |
0-255 |
Tilt |
|
4 |
0-255 |
Tilt fine |
|
5 |
0-255 |
Color wheel |
|
6 |
0-007 |
Gobo 1 |
|
|
008-015 |
Gobo 2 |
|
|
016-023 |
Gobo 3 |
|
|
......... |
.......................... |
|
|
056-063 |
Gobo 8 |
|
|
064-071 |
Gobo 1 shake |
|
|
072-079 |
Gobo 2 shake |
|
|
......... |
.......................... |
|
|
120-127 |
Gobo 8 shake |
|
|
128-189 |
GOBO rotation from fast to slow |
|
|
190-193 |
Stop |
|
|
194-255 |
Gobo rotation from slow to fast |
|
7 |
0-255 |
Strobe |
|
8 |
0-255 |
Dimmer |
|
9 |
0-255 |
X/Y speed |
|
10 |
0-069 |
Non |
|
|
070-079 |
Turn off the light when X/Y moving |
|
|
080-089 |
Non |
|
|
090-099 |
Turn off the light when color wheel moving |
|
|
100-109 |
Non |
|
|
110-119 |
Turn off the light when gobo wheel moving |
|
|
120-199 |
Non |
|
|
200-209 |
reset |
|
|
210-249 |
Non |
|
|
250-255 |
Sound |
|
11 |
0-020 |
Normal |
|
|
021-040 |
stage |
|
|
041-060 |
TV |
|
|
061-080 |
Architectural |
|
|
081-100 |
Theatrical |
|
|
101-255 |
Normal |
|
|
|
|
