ML3610
-
PRODUCT INFO

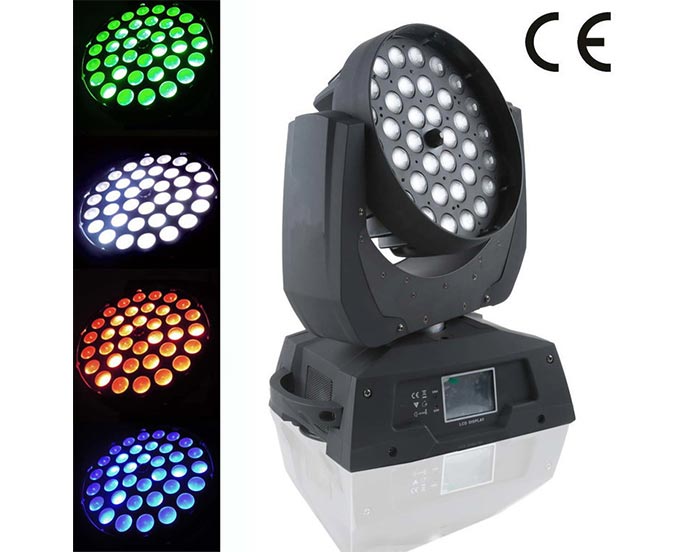

LED36x10W RGBW 4 in 1 Cree moving head wash & zoom light
● LED Qty：36x10W RGBW 4 in 1 Cree LED
● Voltage：AC100~240V
● On-board：Display for Auto.Custom and
● Control Modelol：DMX512
● Channel :16CH
● Beam Angle：25°
●Zoom:Linea Zoom 10-60°
● Pan：630° Tilt：270°
●Size:43x29x52cm
●Weight:12kgs
|
CHANNEL |
＆#118alue |
FUNCTION |
|
1 |
0-255 |
DIMMER |
|
2 |
0-255 |
RED |
|
3 |
0-255 |
GREEN |
|
4 |
0-255 |
BLUE |
|
5 |
0-255 |
WHITE |
|
6 |
0-255 |
DIMMER FOR COLOR MIX |
|
7 |
0-255 |
PAN |
|
8 |
0-255 |
TILT |
|
9 |
0-255 |
PAN FINE（16Bit） |
|
10 |
0-255 |
TILT FINE（16Bit） |
|
11 |
0-255 |
PAN&TILT SPEEN |
|
12 |
0-255 |
ZOOM |
|
13 |
0-255 |
STROBE FROM SLOW TO FAST |
|
14 |
0-25 |
CONTROLLER DELAY(ON) |
|
|
26-50 |
CONTROLLER DELAY(OFF) |
|
|
51-90 |
COLOR SELECTIVE(ON/OFF) |
|
|
91-130 |
PULSE |
|
|
131-170 |
JUMP |
|
|
171-210 |
FADE |
|
|
211-250 |
INDEPENDENT |
|
|
251-255 |
SOUND |
|
15 |
0~20 |
R255 G↑ B0 W0 |
|
|
21~40 |
R↓ G255 B0 W0 |
|
|
41~60 |
R0 G255 B↑ W0 |
|
|
61-80 |
R0 G↓ B255 W0 |
|
|
81-100 |
R↑ G0 B255 W0 |
|
|
101-120 |
R255 G0 B↓ W0 |
|
|
121-140 |
R255 G↑ B↑ W0 |
|
|
141-160 |
R↓ G↓ B255 W0 |
|
|
161-170 |
R255 G255 B255 W255 |
|
|
171-200 |
R0 G0 B0 W0 |
|
|
201-205 |
R242 G204 B5 W227 |
|
|
206-210 |
R242 G215 B5 W227 |
|
|
211-215 |
R255 G255 B50 W255 |
|
|
216-220 |
R255 G255 B90 W255 |
|
|
221-225 |
R255 G255 B118 W255 |
|
|
226-230 |
R255 G255 B132 W255 |
|
|
231-235 |
R255 G255 B151 W255 |
|
|
236-240 |
R255 G255 B171 W255 |
|
|
241-245 |
R255 G255 B185 W255 |
|
|
246-250 |
R255 G255 B197 W255 |
|
|
251-255 |
R255 G255 B234 W255 |
|
16 |
0-9 |
ID LOST EFFICACY |
|
|
10-19 |
ID1 |
|
|
20-29 |
ID2 |
|
|
30-39 |
ID3 |
|
|
40-49 |
ID4 |
|
|
50-59 |
ID5 |
|
|
60-69 |
ID6 |
|
|
70-79 |
ID7 |
|
|
80-89 |
ID8 |
|
|
90-99 |
ID9 |
|
|
100-109 |
ID10 |
|
|
110-119 |
ID11 |
|
|
120-129 |
ID12 |
|
|
130-139 |
ID13 |
|
|
140-149 |
ID14 |
|
|
150-159 |
ID15 |
|
|
160-169 |
ID16 |
|
|
170-179 |
ID17 |
|
|
180-189 |
ID18 |
|
|
190-199 |
ID19 |
|
|
200-209 |
ID20 |
|
|
210-219 |
ID21 |
|
|
220-229 |
ID22 |
|
|
230-239 |
ID23 |
|
|
240-249 |
ID24 |
|
|
250-255 |
ID25 |
