ML0715-III 6 in 1
-
PRODUCT INFO

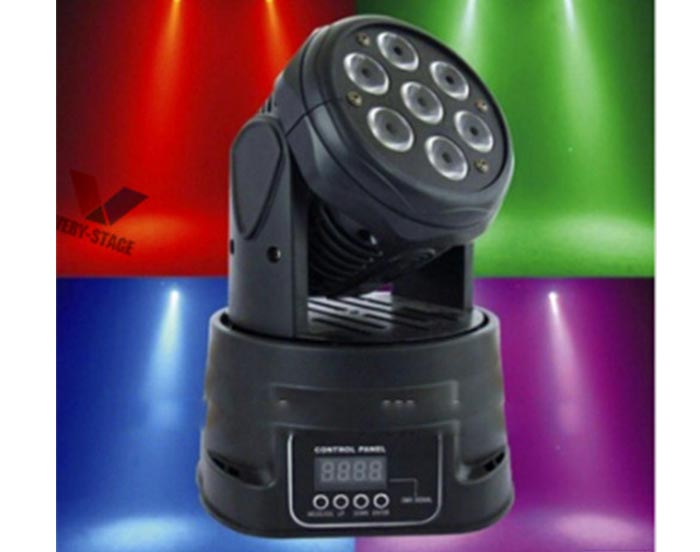

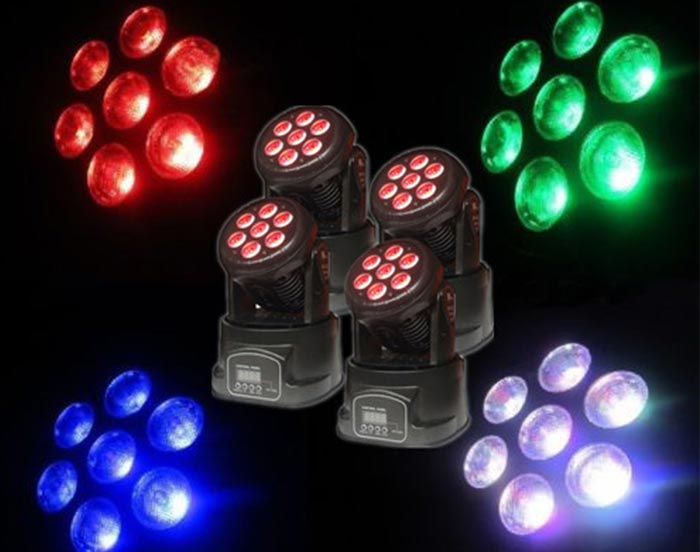

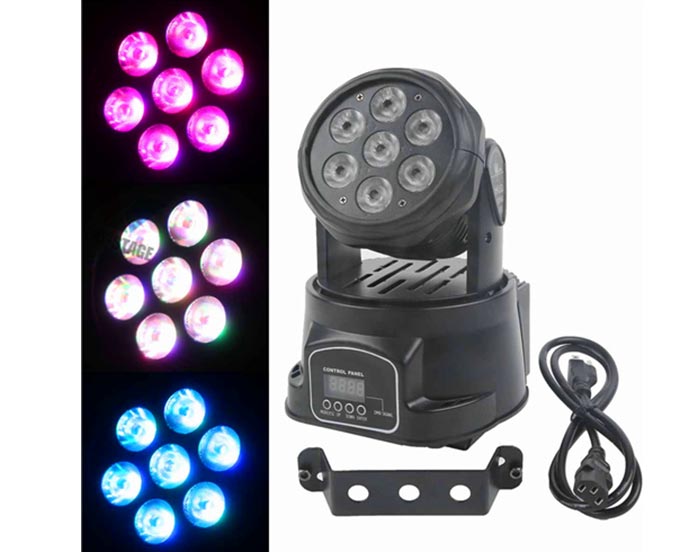

LED7X10W RGBWA+UV 6 in 1 Moving Wash Light
●Voltage:AC100 – 240V
● Frenquency:50-60Hz
● LED:7x15W RGBWA+UV 6 in 1 LED
● Rate:IP 20
● Control channel: 15CH
●Control model:DMX512,master/slave,sound-activated,auto-running with built in programs,color
● Size:27X23X25cm
● Weight:3kgs
|
CH |
Function |
Data |
Descrioption |
|
CH1 |
Pan |
0-255 |
Pan |
|
CH2 |
Pan fine |
0-255 |
Pan fine |
|
CH3 |
Tilt |
0-255 |
Tilt |
|
CH4 |
Tilt Fine |
0-255 |
Tilt Fine |
|
CH5 |
Speed |
0-255 |
Speed |
|
CH6 |
Dimmer&Strobe |
0-7 |
No function |
|
|
8-134 |
Dimmer | |
|
|
135-239 |
Dimmer from slow to fast | |
|
|
240-255 |
Open | |
|
CH7 |
Red |
0-255 |
Red |
|
CH8 |
Green |
0-255 |
Green |
|
CH9 |
Blue |
0-255 |
Blue |
|
CH10 |
White |
0-255 |
White |
|
CH11 |
Amber |
0-255 |
Amber |
|
CH12 |
Function |
0-7 |
Color combination 1 |
|
8-21 |
Color combination 2 | ||
|
22-34 |
Color combination 3 |
|
CH12 |
|
35-49 |
Color combination 4 |
|
50-63 |
Color combination 5 | ||
|
64-77 |
Color combination 6 | ||
|
78-91 |
Color combination 7 | ||
|
........; |
...................... | ||
|
218-231 |
Color combination 17 | ||
|
234-255 |
Color jump change | ||
|
CH13 |
Color Speed |
0-255 |
Color Speed |
|
CH14 |
Auto running |
0-7 |
MOVEMENT(AUTO&SOUND EFFECT) |
|
8-22 |
Blank | ||
|
23-37 |
Auto1 | ||
|
38-53 |
Auto2 | ||
|
54-67 |
Auto3 | ||
|
68-82 |
Auto4 | ||
|
........ |
.............. | ||
|
113-127 |
Auto7 | ||
|
128-142 |
Auto8 | ||
|
143-157 |
Sound 1 | ||
|
158-172 |
Sound 2 | ||
|
......... |
............. | ||
|
218-232 |
Sound 6 | ||
|
233-255 |
Sound 7 | ||
|
|
Sound 8 | ||
|
CH15 |
RESET |
150-200 |
Reset |
