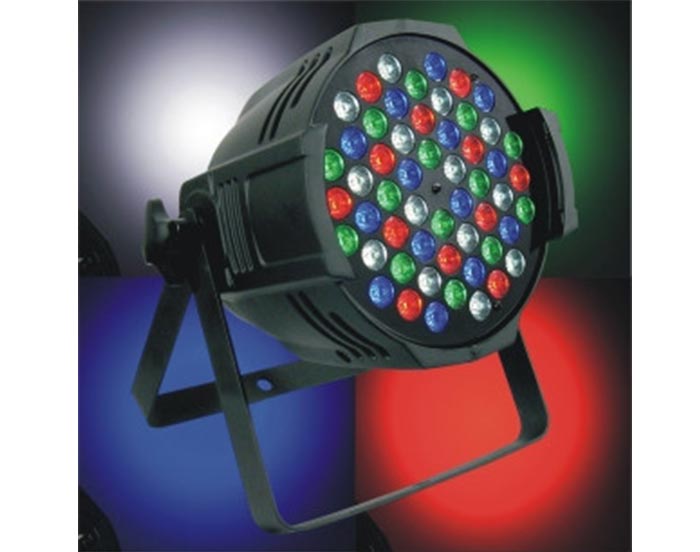

LED54x3 RGBW Par Light
●Voltage:AC100 – 250V
● Frenquency:50-60Hz
● Power: 180W
● LED:54x3 RGBW
● Rate:IP 20
● Control channel: 4/8CH
●Control model:DMX 512,master/slave,sound-activated,auto-running with built in programs,color
● Size:29.5x29.5x28cm
● Weight:5kgs
DMX8CH Mode Channel | ||
Channel |
number |
Function Description |
CH 1 |
0-255 |
General Dimmer |
CH 2 |
0 |
Red off |
1-255 |
Red ,from dark to light | |
CH 3 |
0 |
Green off |
1-255 |
Green ,from dark to light | |
CH 4 |
0 |
Blue off |
1-255 |
Blue ,from dark to light | |
CH5 |
0 |
White off |
1-255 |
White ,from dark to light | |
CH6 |
0-255 |
Strobe |
0-25 |
Open"console delay" | |
|
26-50 |
Close"console delay" |
|
51-100 |
Color choose:CH8 choose color |
|
101-150 |
Color pulse change:CH8 control speed |
|
151-200 |
Color jump change:CH8 control speed |
|
201-250 |
Color gradual change:CH8 control speed |
|
251-255 |
Sound control |
CH 8 |
0-255 |
Speed:slow-fast |
|
|
CH7 in 51-100,CH7 for color change |
|
|
CH7 in 101-250,CH7 for speed |
