LP-O-1203
-
PRODUCT INFO

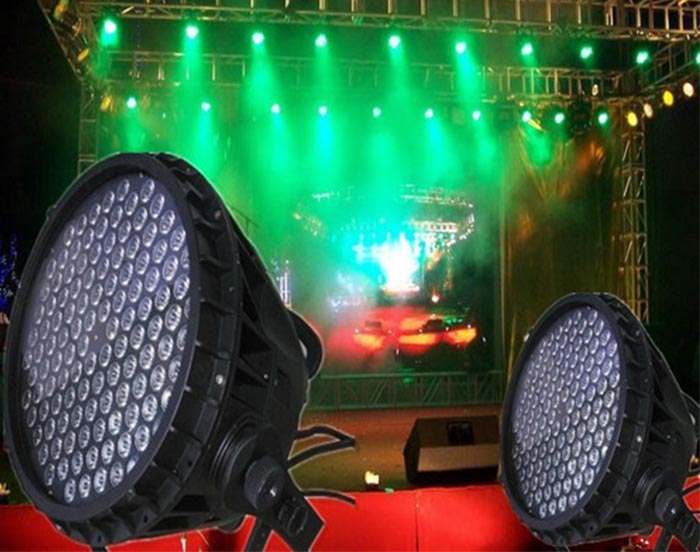

LED120x3W RGBW Waterproof Par Light
● Frenquency:50-60Hz
● Lamp:120x3W RGBW
● Rate:IP65
● Control channel: 8CH
● Control model:DMX512,master/slave,sound-activated
●Size:50x40x35cm
●G.W:15kgs
|
DMX 8CH Mode Channel | ||
|
Channel |
number |
Function Description |
|
CH 1 |
0-255 |
General Dimmer |
|
CH2 |
0-255 |
Strobe |
|
CH3 |
0-50 |
8 channel control |
|
51-100 |
Color Jump | |
|
101-150 |
Color gradual | |
|
151-200 |
Color pluse | |
|
201-255 |
Sound control | |
|
CH4 |
0-255 |
speed |
|
CH5 |
0-255 |
Red ,from dark to light |
|
CH6 |
0-255 |
Green ,from dark to light |
|
CH7 |
0-255 |
Blue ,from dark to light |
|
CH8 |
1-255 |
White ,from dark to light |
