LED matrix
-
PRODUCT INFO

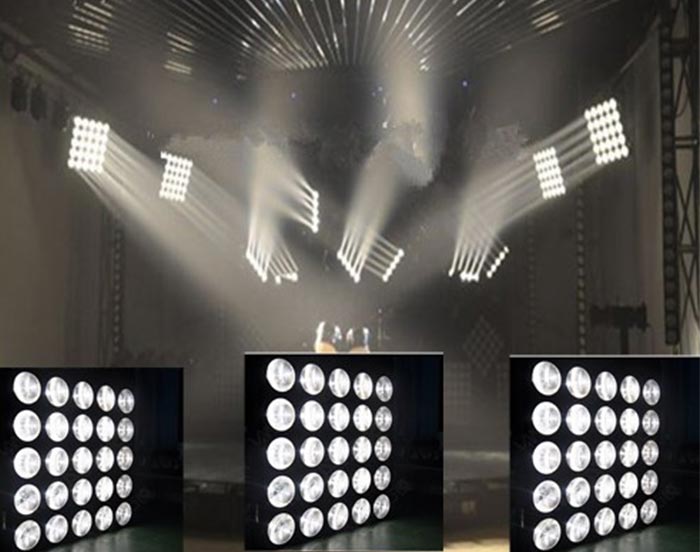

25x9W RGBW 4 in 1 LEDs Matrix Light
● Voltage: AC100-240V 50/60Hz
● Light source:25x9W RGBW 4 in 1 LEDs
● DMX channels: 9CH、105CH
● Control Model:Auto running, DMX, sound active,master/slave,pixel control
● Light size: 58*58*12CM
● Weight:13kg
|
CH |
Function |
Data |
Descrioption |
|
CH1 |
Dimmer |
0-255 |
Red,Green,Blue,linear dimmer,dark to bright |
|
CH2 |
Strobe |
0-255 |
0-255,slow to fast |
|
CH3 |
Function Choice |
0-20 |
80 DMX Control |
|
|
|
21-70 |
Color change |
|
|
|
71-120 |
Color fade |
|
|
|
121-170 |
Color Pulse |
|
|
|
171-220 |
Chase |
|
|
|
221-240 |
Sound active 1 |
|
|
|
251-255 |
Sound Active 2 |
|
CH4 |
Function Speed |
0-255 |
Slow to fast |
|
CH5 |
Red 1 |
0-255 |
R1 Dimmer Dark to bright |
|
CH6 |
Green 1 |
0-255 |
G1 Dimmer Dark to bright |
|
CH7 |
Blue 1 |
0-255 |
B1 Dimmer, Dark to bright |
|
CH8 |
White 1 |
0-255 |
W1 Dimmer, Dark to bright |
|
CH9 |
Red 2 |
0-255 |
R2 Dimmer, Dark to bright |
|
CH10 |
Green2 |
0-255 |
G2 Dimmer Dark to bright |
|
CH11 |
Blue 2 |
0-255 |
B2 Dimmer Dark to bright |
|
CH12 |
White 2 |
0-255 |
W2 Dimmer, Dark to bright |
|
…. |
…… |
….. |
…… |
|
CH105 |
DMX512ID |
5-9 |
ID1 |
|
|
|
10-14 |
ID 2 |
|
|
|
….. |
…… |
|
|
|
255 |
ID51 (max control fixture) |
