LED matrix wash
-
PRODUCT INFO

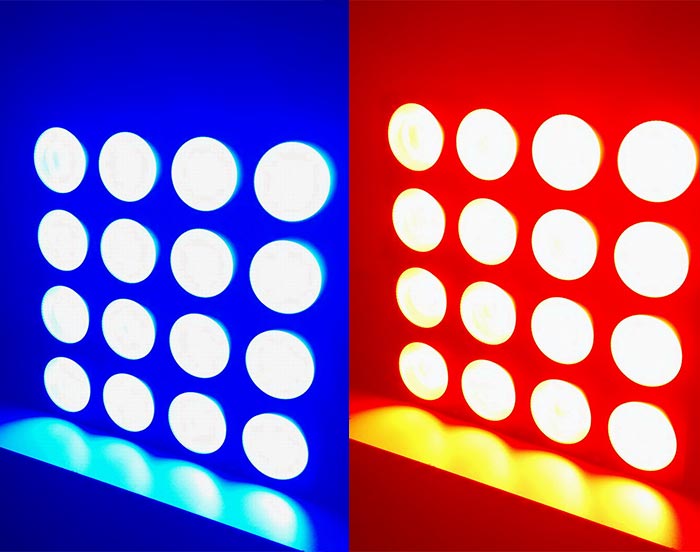

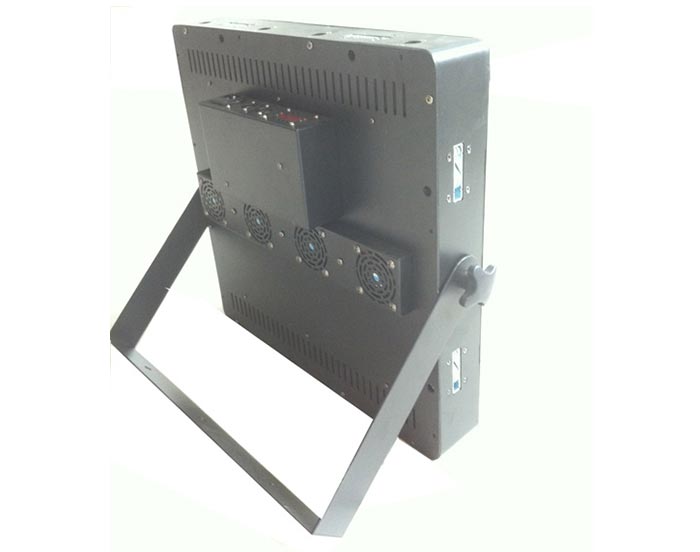

16x9W RGB 3in1 LEDs Matrix Light
● Voltage: AC100-240V 50/60Hz
● Light source:16x9W RGB 3in1 LEDs
● DMX channels: 8CH、48CH、53CH
● Control Model:Auto running, DMX, sound active,master/slave,pixel control
● Light size: 46*46*10CM
● Weight:11kg
|
CH |
Function |
Data |
Descrioption |
|
CH1 |
Dimmer |
0-255 |
Red,Green,Blue,linear dimmer,dark to bright |
|
CH2 |
Strobe |
0-255 |
0-255,slow to fast |
|
CH3 |
Function Choice |
0-20 |
80 DMX Control |
|
|
|
21-70 |
Color change |
|
|
|
71-120 |
Color fade |
|
|
|
121-170 |
Color Pulse |
|
|
|
171-220 |
Chase |
|
|
|
221-240 |
Sound active 1 |
|
|
|
251-255 |
Sound Active 2 |
|
CH4 |
Function Speed |
0-255 |
Slow to fast |
|
CH5 |
Red 1 |
0-255 |
R1 Dimmer Dark to bright |
|
CH6 |
Green 1 |
0-255 |
G1 Dimmer Dark to bright |
|
CH7 |
Blue 1 |
0-255 |
B1 Dimmer, Dark to bright |
|
CH8 |
Red 2 |
0-255 |
R2 Dimmer Dark to bright |
|
…. |
…… |
….. |
…… |
|
CH19 |
Blue 16 |
0-255 |
B16 Dimmer, Dark to bright |
|
CH53 |
DMX512ID |
5-9 |
ID1 |
|
10-14 |
ID 2 |
