LED matrix
-
PRODUCT INFO

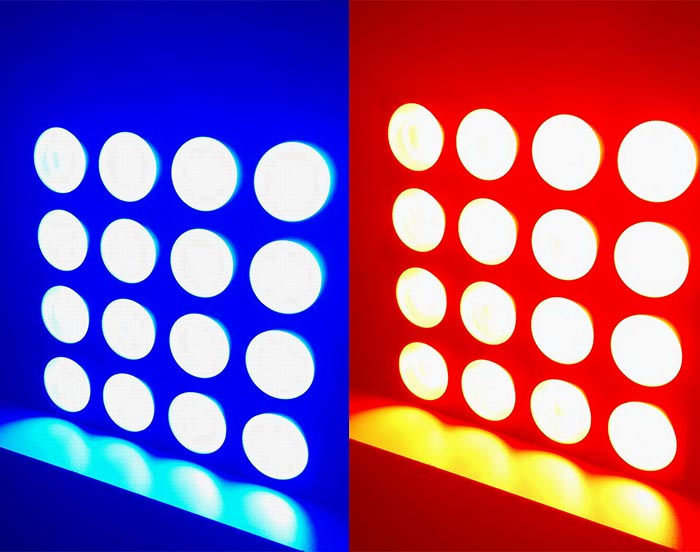

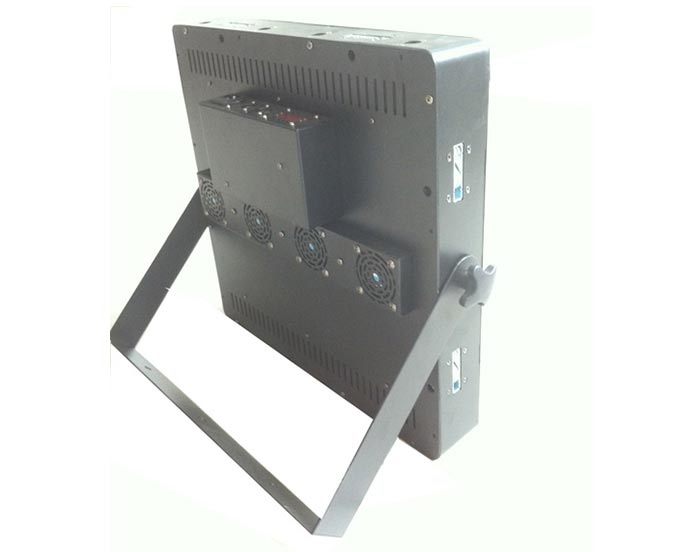

16x10W Cree LEDs Matrix Light
● Voltage: AC100-240V 50/60Hz
● Light source:16x10W Cree LEDs
● DMX channels: 5CH、16CH、21CH
● Control Model:Auto running, DMX, sound active,master/slave,pixel control
● Light size: 46*46*10CM
● Weight:11kg
|
CH |
Function |
Data |
Descrioption |
|
CH1 |
Dimmer |
0-255 |
linear dimmer,dark to bright |
|
CH2 |
Strobe |
0-255 |
0-255,slow to fast |
|
CH3 |
Function Choice |
0-20 |
21 DMX Control |
|
|
|
121-170 |
Color Pulse |
|
|
|
171-220 |
Chase |
|
|
|
221-240 |
Sound active 1 |
|
|
|
251-255 |
Sound Active 2 |
|
CH4 |
Function Speed |
0-255 |
Slow to fast |
|
CH5 |
White 1 |
0-255 |
W1 Dimmer Dark to bright |
|
CH6 |
White2 |
0-255 |
W2 Dimmer Dark to bright |
|
CH7 |
White 3 |
0-255 |
W3 Dimmer, Dark to bright |
|
........ |
.......... |
......... |
............ |
|
CH20 |
White 16 |
0-255 |
W16 Dimmer, Dark to bright |
|
CH21 |
DMX512ID |
5-9 |
ID1 |
|
|
10-14 |
ID 2 | |
|
|
….. |
…… | |
|
|
255 |
ID51 (max control fixture) |
